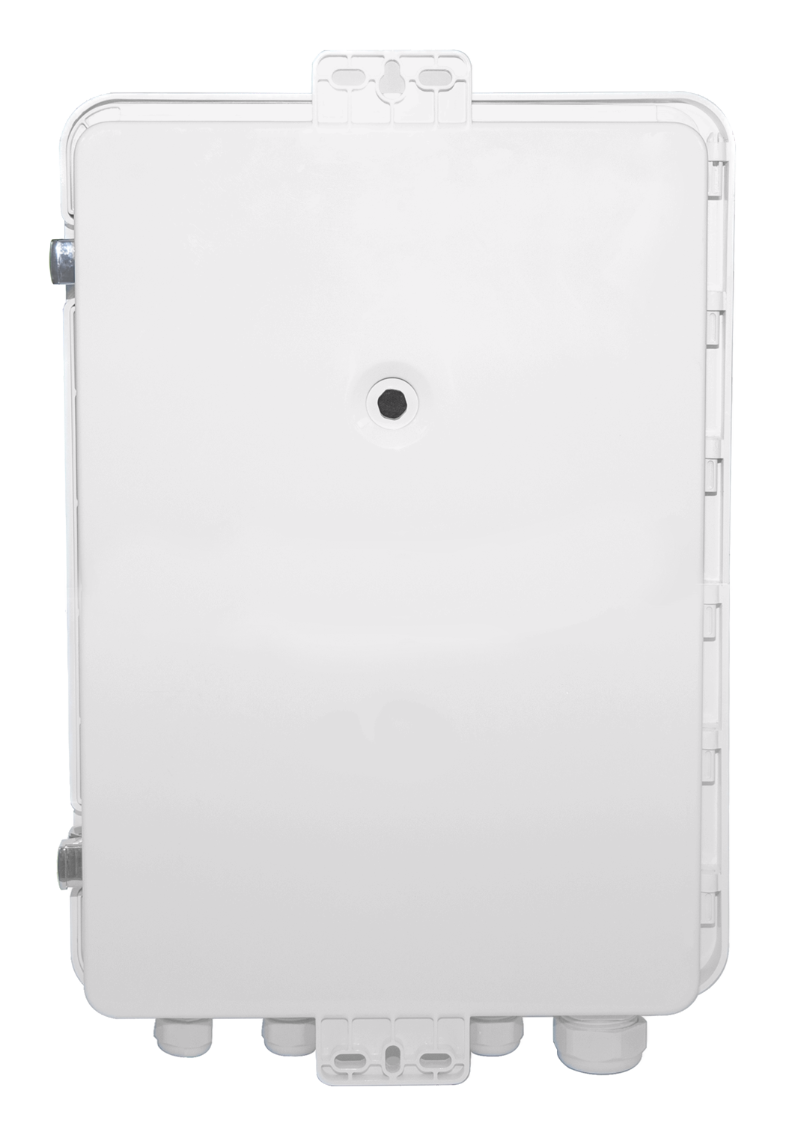

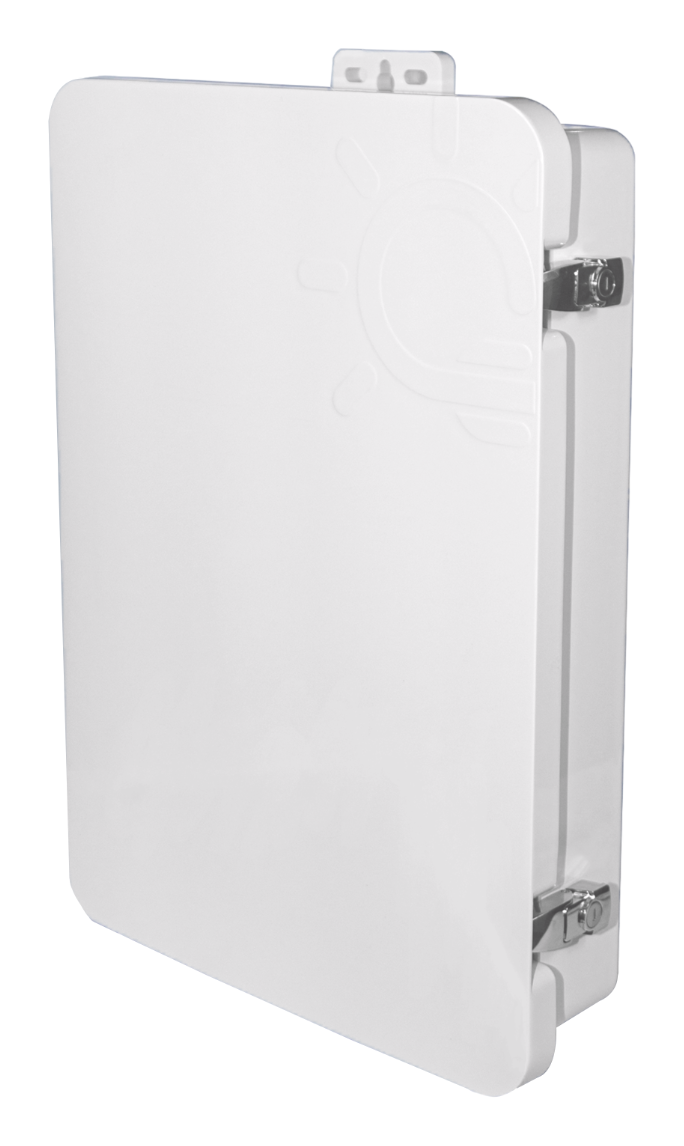

HAVA Smart Dock

Smart Dock 7.2

Load and power control in one device – for reliable connections between microinverters, battery storage and loads in a grid-connected PV system.

Request advice Technical data

7200 W: Solar input capacity up to
IP65: Enclosure protection
2: Maximum PV strings

At a glance

Safely connected. Intelligently controlled.

Pre-installed system components, integrated communication and a robust enclosure simplify the connection of central energy flows.

IP65 For indoor and outdoor installation

−30…+50 °C Operating temperature

2 PV strings up to 7.2 kW

80 A Nominal CT current

6,5 kg Compact system unit

PLC · RS485 · Wi-Fi · 4G Integrated communication options

Concept

Bring energy flows together at one point.

The Smart Dock combines protection, switching and communication components. The integrated EQ Gateway supports remote monitoring, maintenance and system management.

Pre-installed components

Circuit protection, surge protection and the gateway are combined for clear system integration.

Robust enclosure

The IP65 protection rating supports indoor and outdoor use.

Connected monitoring

PLC, RS485, Wi-Fi and 4G enable integration into system monitoring.

Technical data

Models and technical values.

Technical details for your planning.

Ausführung / Configuration Smart Dock 7.2

Gateway EQ-MU series × 1

Netzseitiger Leitungsschutzschalter / Grid-side circuit breaker NXBLE-63E 2P C63 30mA × 1

Lastseitiger Leitungsschutzschalter / Load-side circuit breaker NXB-63E D63 2P × 1

Leitungsschutzschalter Mikro-Wechselrichter / Microinverter circuit breaker NXB-63E C20 2P × 2

Überspannungsschutz / SPD NXU-IIG E 40KA/385V 2P × 1

Zähler, optional / Meter, optional ADL200N-CT/D10 × 3
