Intelligent energy management gateway

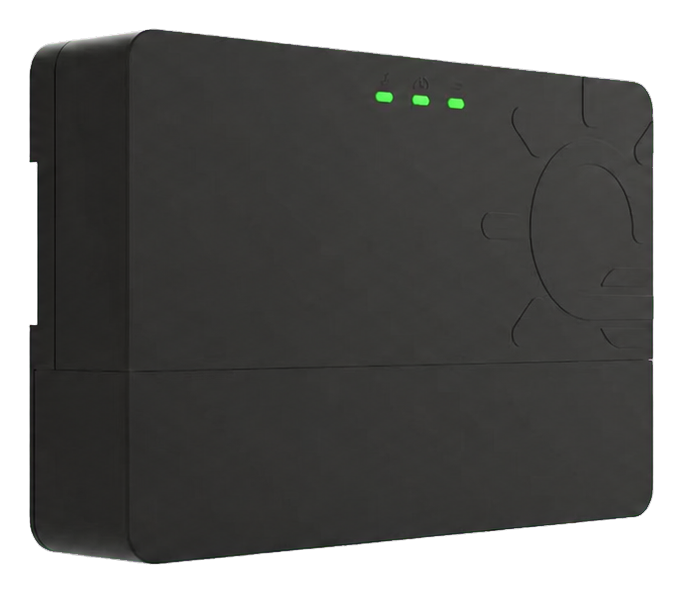

HAVA Smart Gateway

Smart Gateway Pro

Collect energy data centrally, monitor systems remotely and control export power intelligently – for connected PV systems.

Request advice Technical data

250: Supported microinverters
IP30: Protection rating
5: Years of product warranty

At a glance

Reliable visibility into energy flows.

The Smart Gateway connects on-site data acquisition with online monitoring and supports two communication variants – with or without 4G.

PLC Real-time data from microinverters

250 Connect up to 250 microinverters centrally

Ethernet · RS485 · CAN Flexible wired communication

WLAN · 4G · Bluetooth Flexible wireless communication

3 DI · 4 DO Integrated digital inputs and outputs

IP30 Protection rating per data sheet

Concept

Connect monitoring, maintenance and grid protection.

The gateway collects system data via PLC and uploads it through Ethernet, Wi-Fi or – on the EQ-MU-WG – 4G. This supports remote monitoring, parameter configuration and export limitation.

Central data acquisition

One device connects up to 250 microinverters via PLC and collects the relevant operating data.

Remote O&M

Firmware updates and parameter configuration can be supported remotely.

Intelligent export control

Zero-export and power-limiting functions help prevent unwanted reverse power flow.

Technical data

Models and technical values.

Technical details for your planning.

Modell / Model Smart Gateway Pro

Unterstützte Geräte / Supported devices Up to 250 microinverters

Garantie / Warranty 5 years

Documents

Datasheet and advice.

All technical details as a compact PDF – or talk to us directly.

Download datasheet Contact
